SHEET METAL
LASER CUTTING MACHINES
From everyday sheet metal fabrication to large-format, heavy-plate cutting.
MAXIMUM SHEET SIZE
Up to 14 × 3.1 m
Available on A14 configuration
CUTTABLE METALS
SteelStainlessAluminium
Copper and Brass also available
MATERIAL THICKNESS
Up to 100mm
Cutting charts available
POSITIONING ACCURACY
±0.05 mm/m
Specified across listed models
Thickness limits, cut quality and cycle times depend on material, laser power, and assist gas
All machines come with pre-programmed, optimised, cutting parameters for your material needs

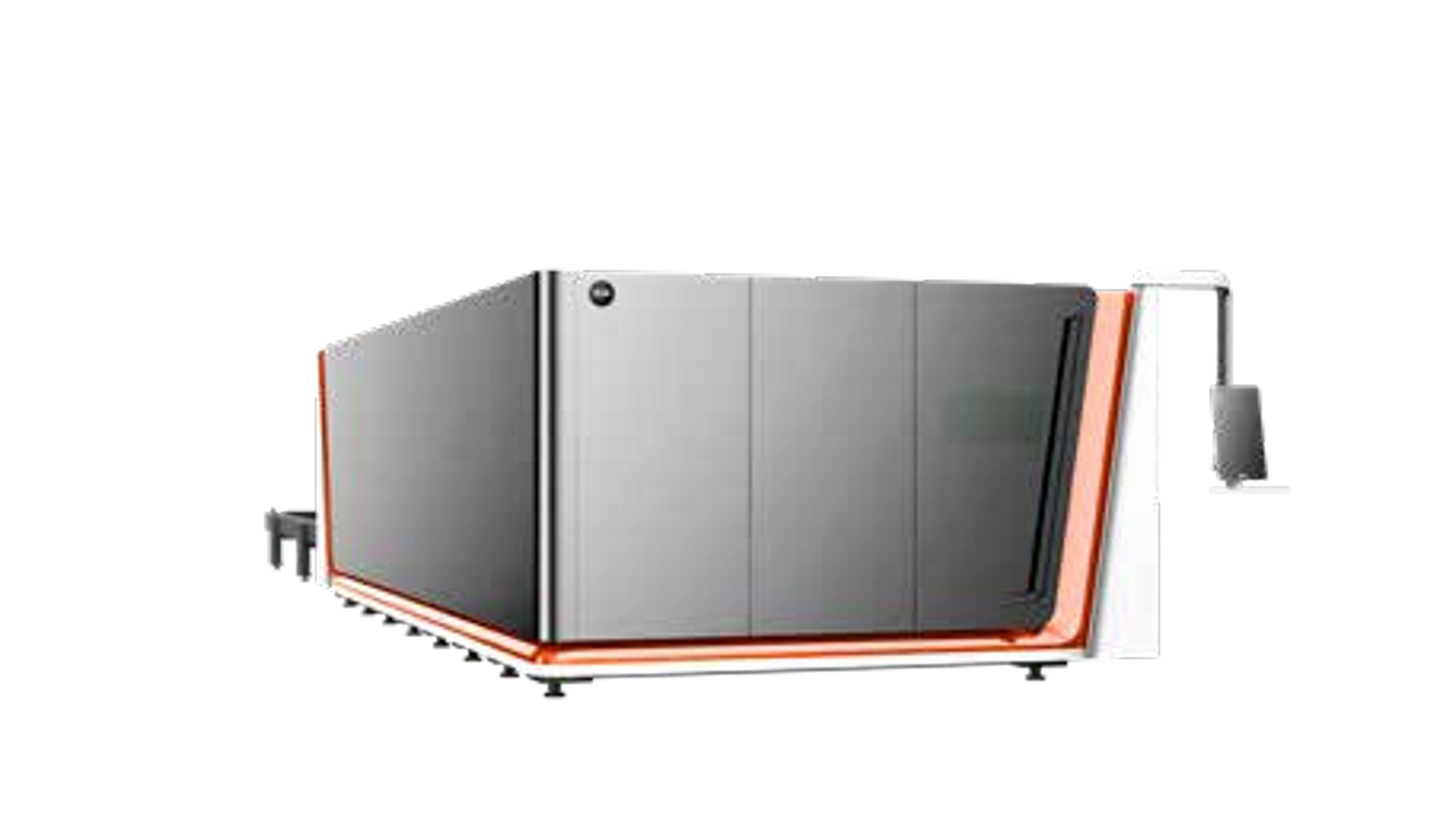

Flagship Sheet Metal Fiber Laser Cutting Machine
| Model | P12 | P8 | P6 | P4 | P3 |
|---|---|---|---|---|---|
|
Working Area (mm) |
12500×2600 |
8050×2500 |
6500×2500 |
4000×2000 |
3048×1524 |
|
Laser Power (kW) |
60/30/20/12 |
30/20 |
60/30/20/12 |
60/30/20/12/6 |
60/30/20/
12/6/3 |
|
Positioning Accuracy (mm/m) |
±0.05 |
±0.05 |
±0.05 |
±0.05 |
±0.05 |
|
Repositioning accuracy (mm) |
±0.03 |
±0.03 |
±0.03 |
±0.03 |
±0.002 |
|
Max. linkage speed (m/min) |
200 |
200 |
200 |
200 |
200 |
|
Max. acceleration (G) |
2.8 |
2.8 |
2.8 |
4.0 |
4.0 |

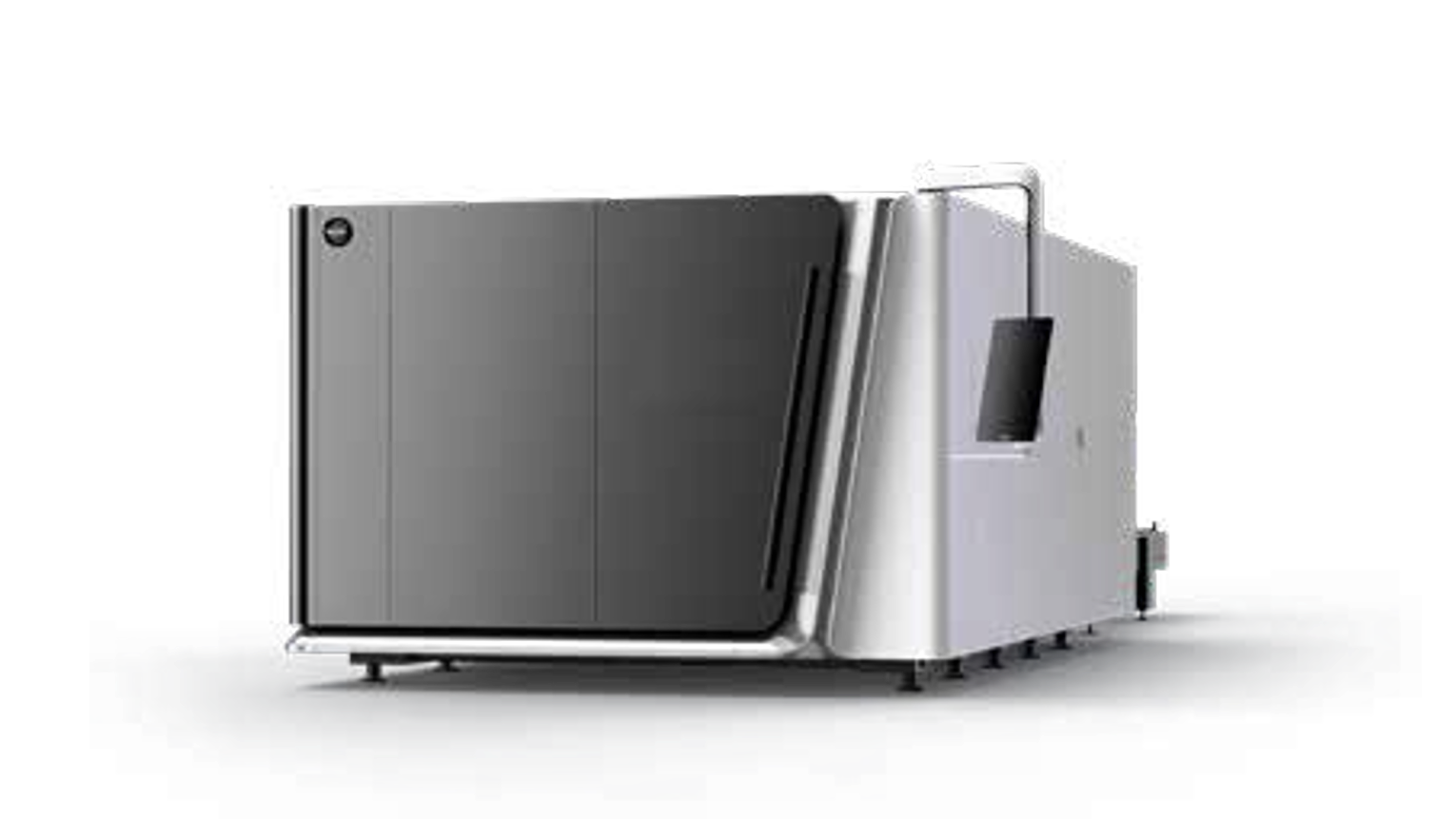

Base Sheet Metal Laser Cutting Machine
| Model | C12 | C6 | C4 | C3 (V4.0) | C3 (V3.1) |
|---|---|---|---|---|---|
|
Working Area (mm) |
12200×2500 |
6100×2500 |
4000×2000 |
3048×1524 |
3048×1524 |
|
Laser Power (kW) |
60/30/20/12 |
30/20/12/6 |
20/12/6/3 |
12/6/3 |
20/12/6/3/1.5 |
|
Positioning Accuracy (mm/m) |
±0.05 |
±0.05 |
±0.05 |
±0.05 |
±0.05 |
|
Repositioning accuracy (mm) |
±0.03 |
±0.03 |
±0.03 |
±0.03 |
±0.03 |
|
Max. linkage speed (m/min) |
110 |
110 |
110 |
180 |
120 |

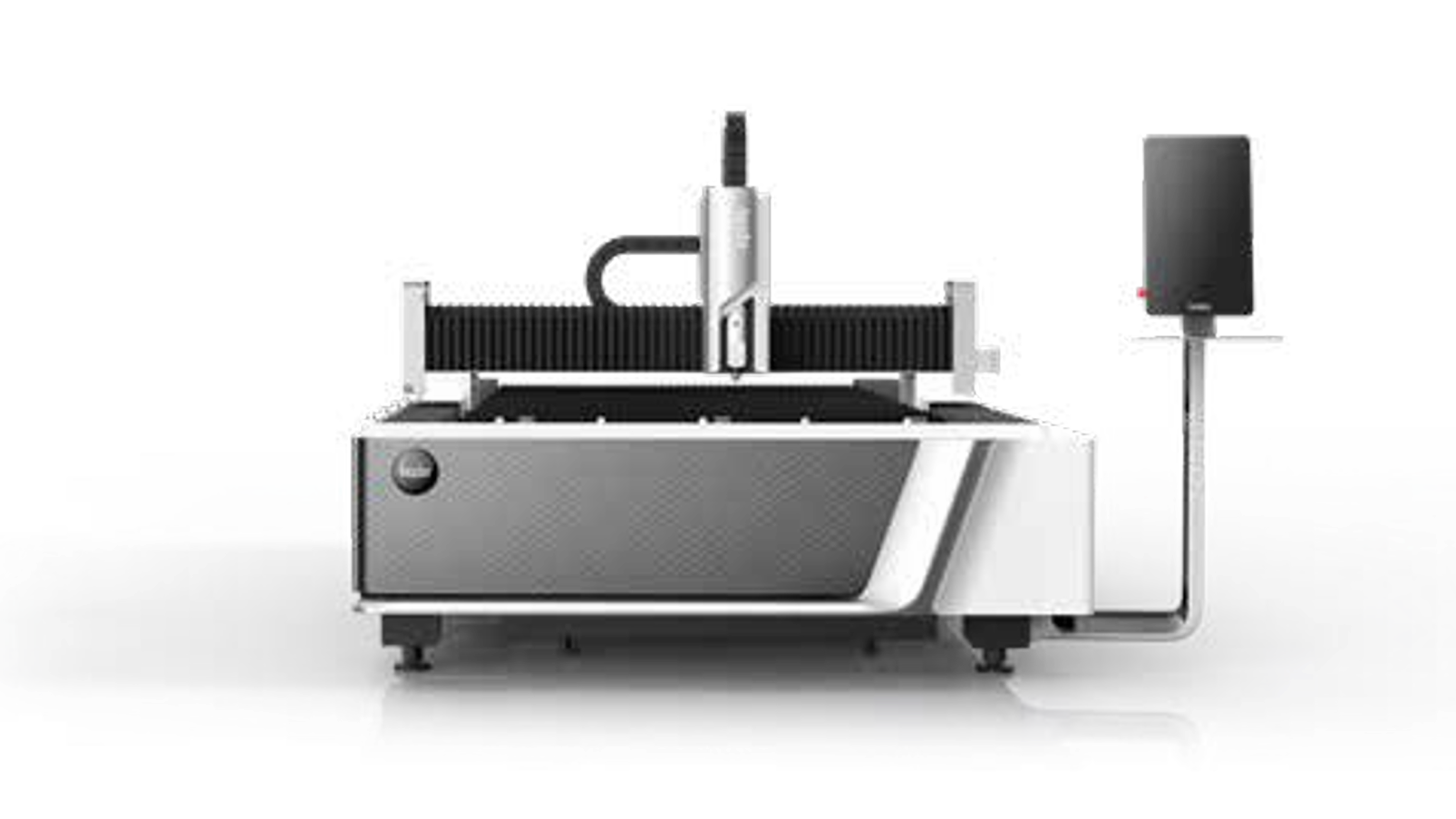

Entry-level Sheet Metal Fiber Laser Cutting Machine
| Model | A14 | A13 | A12 | A8 | A6L Plus | A6 Plus | A6M | A6 | A4 Plus | A4 | A3 |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Working Area (mm) |
14000×
3100 |
13200×
3200 |
12500×
2600 |
8050×
2500 |
6500×
2500 |
6500×
2500 |
6100×
2000 |
6100×
1524 |
4000×
2000 |
4000×
1524 |
3048×
1524 |
|
Laser Power (kW) |
60/30/20/12 |
30/20/12 |
30/20/12/6 |
20/12/6 |
12/6/3 |
12/6/3 |
12/6/3 |
12/6/3/1.5 |
12/6/3/1.5 |
6/3/1.5 |
12/6/3/1.5 |
|
Positioning Accuracy (mm/m) |
±0.05 |
±0.05 |
±0.05 |
±0.05 |
±0.05 |
±0.05 |
±0.05 |
±0.05 |
±0.05 |
±0.05 |
±0.05 |
|
Repositioning accuracy (mm) |
±0.03 |
±0.03 |
±0.03 |
±0.03 |
±0.03 |
±0.03 |
±0.03 |
±0.03 |
±0.03 |
±0.03 |
±0.03 |
|
Max. linkage speed (m/min) |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
100 |

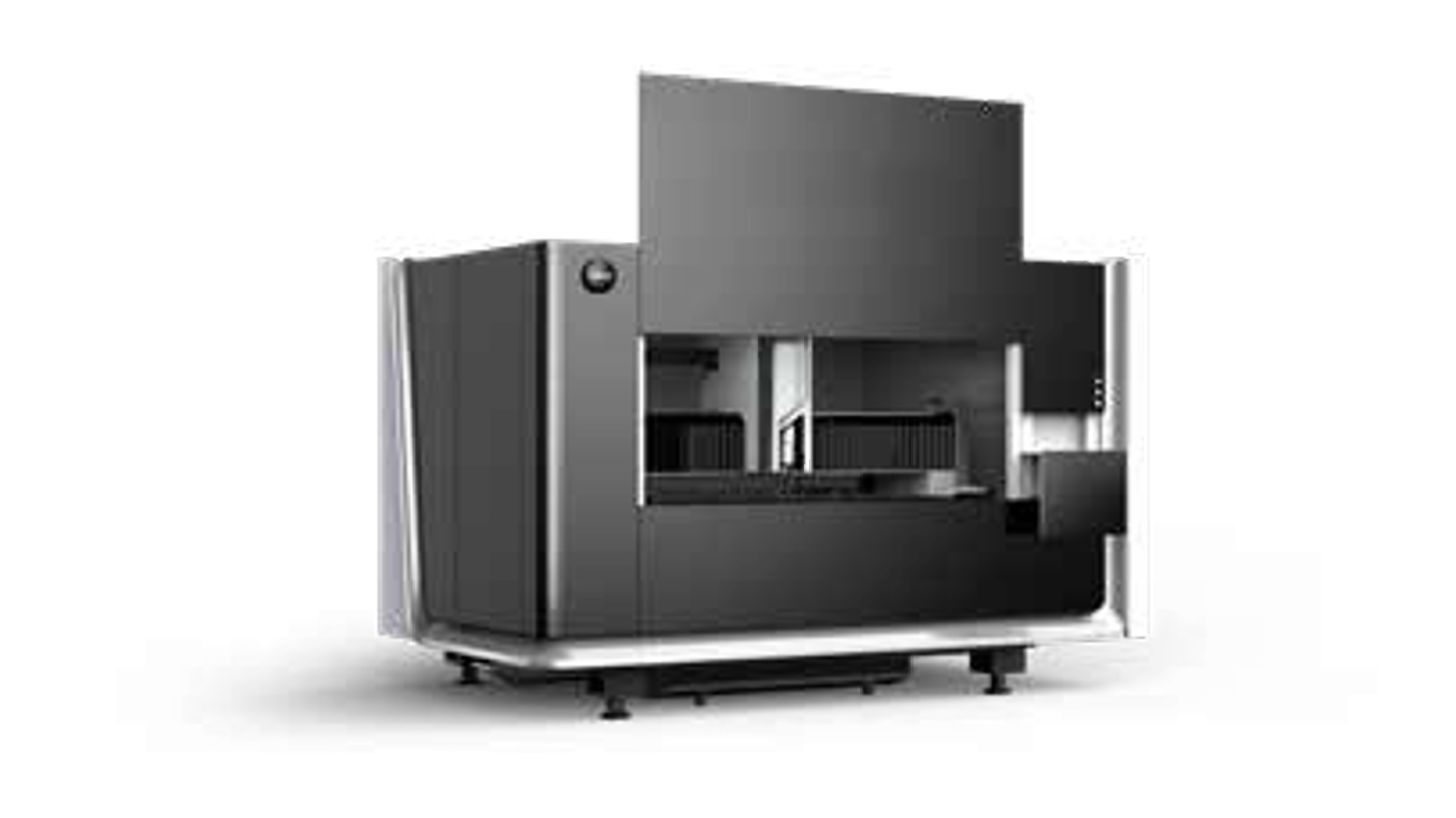

Sheet Metal Fiber Laser Cutting Machine with Pallet Changer
| Model | i7 | i6 | i5 |
|---|---|---|---|
|
Working Area (mm) |
3048×1524 |
2000×1000 |
1000×1500 |
|
Laser Power (kW) |
12/6/3/1.5 |
6/3/1.5 |
6/3/1.5 |
|
Positioning Accuracy (mm/m) |
±0.05 |
±0.05 |
±0.05 |
|
Repositioning accuracy (mm) |
±0.03 |
±0.03 |
±0.03 |
|
Max. linkage speed (m/min) |
91 |
91 |
91 |
