BEAM / TUBE
LASER CUTTING MACHINES
Tube lasers are advanced cutting machines designed to precisely cut and shape tubes and profiles of various materials, including steel, stainless steel, aluminium, and copper. These machines use fibre laser technology to deliver high-speed, high-precision cuts on round, square, rectangular tubes, and even complex structural profiles. The cutting process is automated, with the tube loaded into the machine and securely clamped in place using a motorised chucking system. The laser beam then follows the programmed path, cutting through the material with exceptional accuracy.
Tube lasers are ideal for industries such as automotive, construction, HVAC, and steel fabrication, where complex cuts, angles, and bevels are often required. The benefits of using a tube laser include reduced material waste, faster processing times, and improved cutting precision, which ultimately lead to cost savings, increased production capacity, and consistent high-quality results in tube and profile cutting.

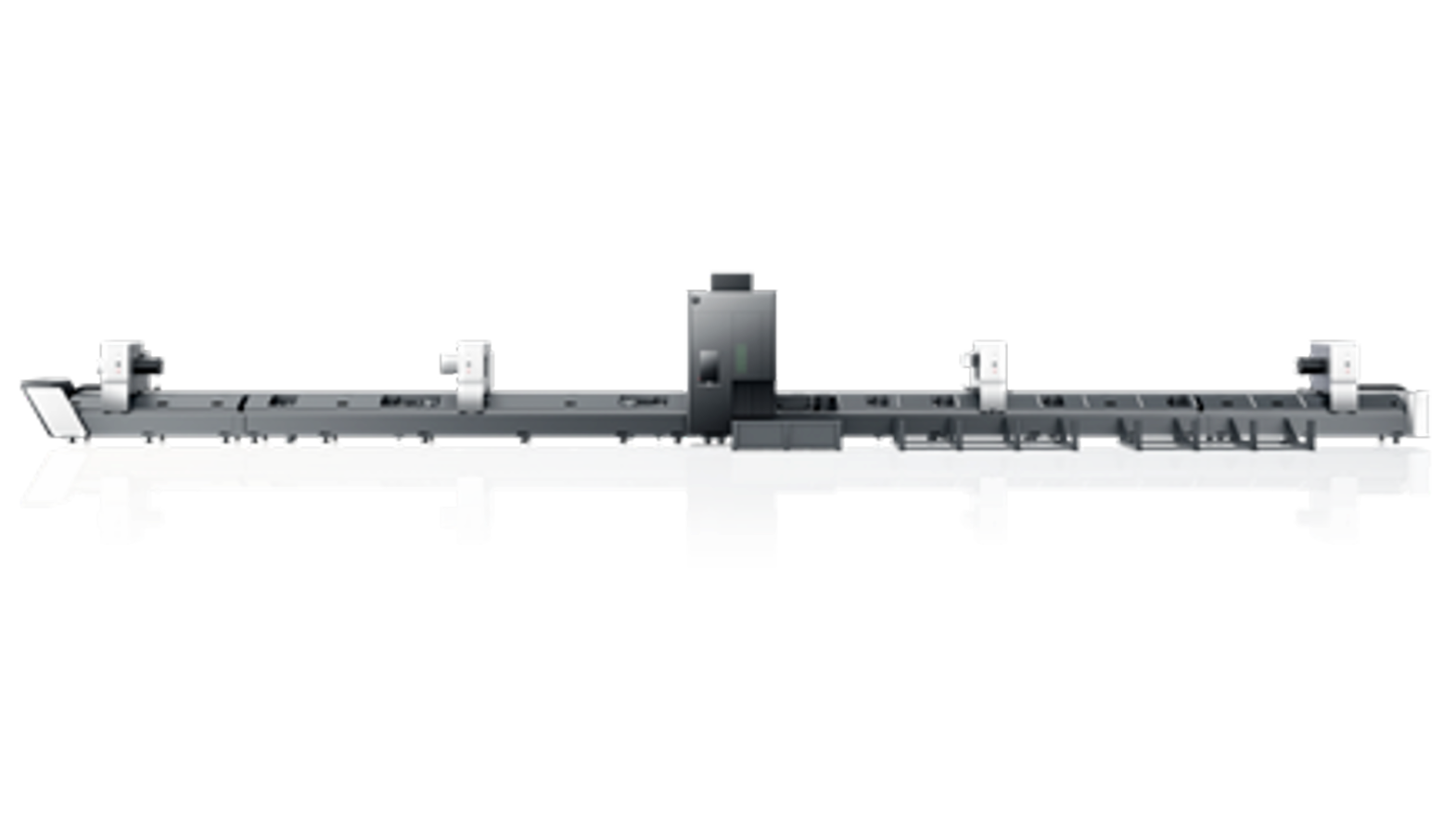

Flagship Fiber Laser Metal Tube Cutting Machine
Bodor M Series is the flagship tube laser, enabling simultaneous cutting with loading/unloading. With 4‑chucks, it tackles heavy tubes efficiently and at scale.
| Model | M5 | M3 | M2 |
|---|---|---|---|
|
Maximum Machinable Tube Length (m) |
12.5 |
6.5/9.2/12.5/15.2 |
6.5 |
|
Laser Power (kW) |
12/6 |
12/6/3 |
6/3 |
|
Round Tube Size Range OD (mm) |
80 – 510 |
25 – 356 |
8 – 230 |
|
Square Tube Size Range (mm) |
80 – 510 |
25 – 356 |
8 – 230 |
|
Rectangular Tube Size Range (mm) |
80 – 510 |
25 – 365 |
8 – 230 |
|
Maximum Column Size (mm) |
305x305x97 |
305x305x97 |
305x305x97 |

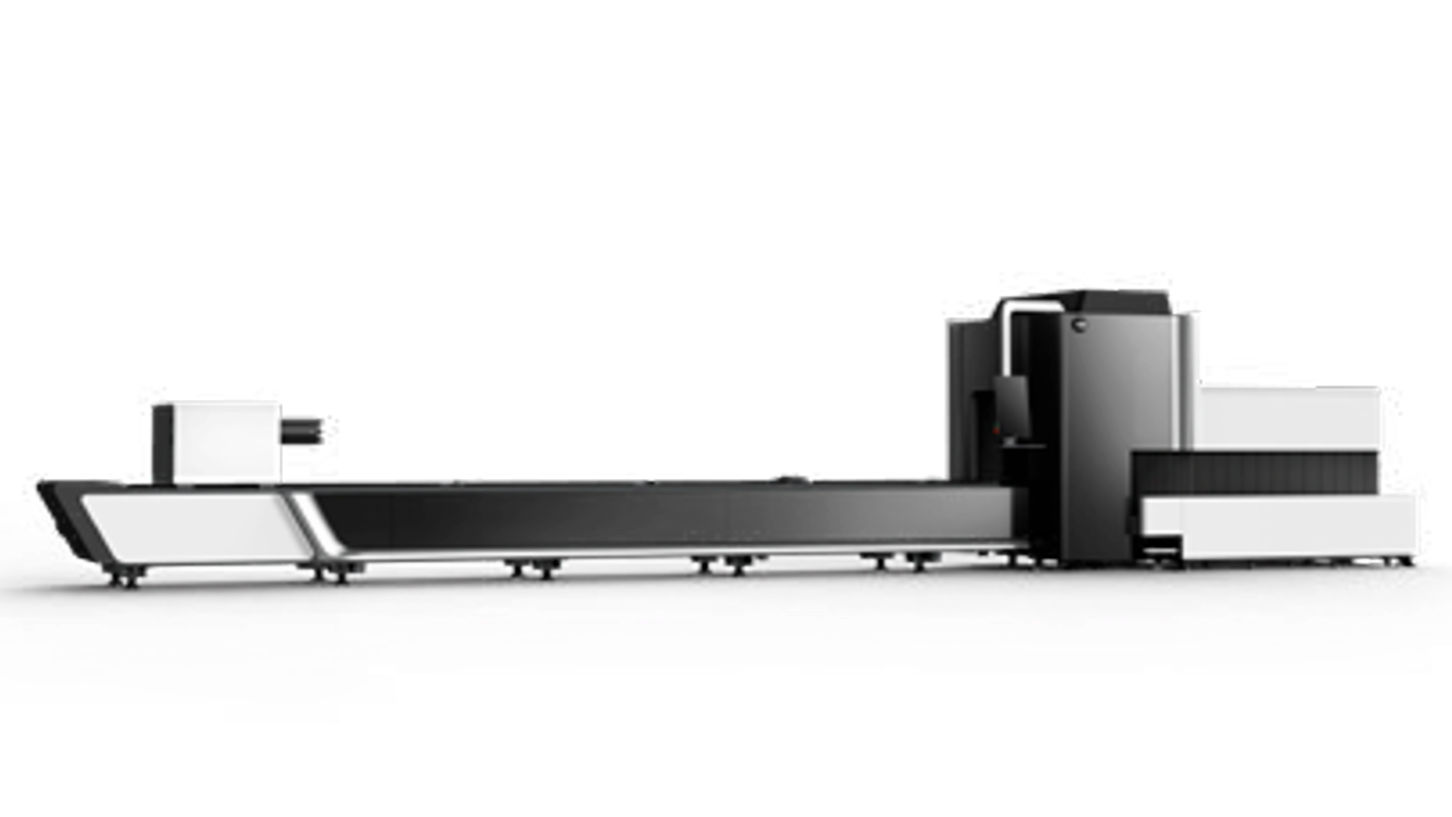

Performance Tube Laser Cutting Machine
Bodor T Series delivers high‑speed, high‑precision tube cutting with powerful cutting options, engineered for uninterrupted production and versatile materials—ideal for automotive and general fabrication.
| Model | T3 | T2 |
|---|---|---|
|
Maximum Machinable Tube Length (mm) |
6.5/9.2 |
6.5/9.2 |
|
Laser Power (kW) |
6/3 |
6/3 |
|
Round Tube Size Range OD (mm) |
25 – 356 |
8 – 230 |
|
Square Tube Size Range (mm) |
25 – 356 |
8 – 230 |
|
Rectangular Tube Size Range (mm) |
25 – 365 |
8 – 230 |
|
Maximum Column Size (mm) |
305x305x97 |
203x203x100 |

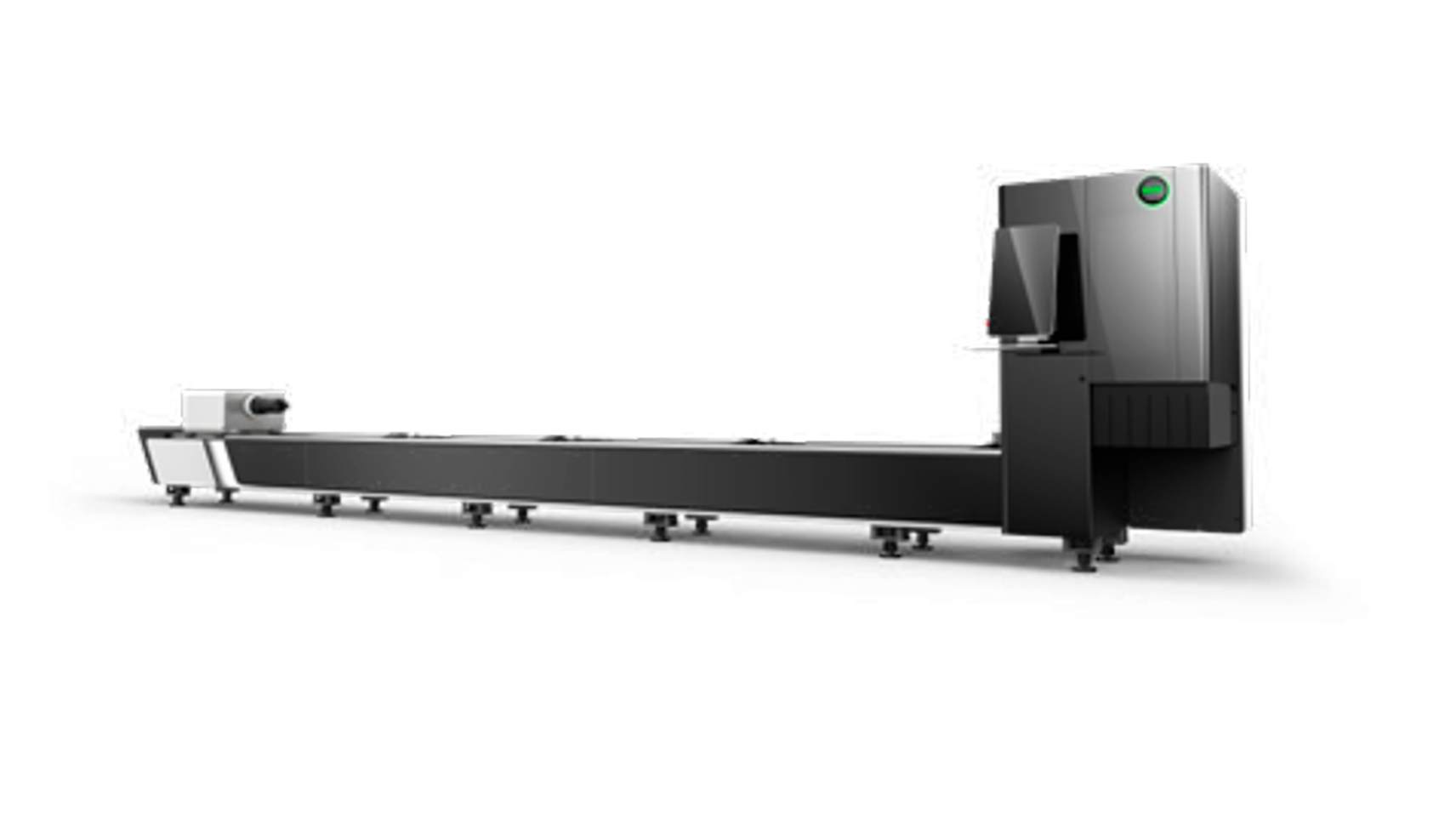

Entry-level Tube Laser Cutting Machine
Bodor K Series is an entry‑level tube laser offering rapid loading to 100 m/min and 150 r/min chuck rotation, with optional K‑Loader automation for efficient, precise everyday cutting.
| Model | K5 | K3 PRO | K3 | K2 PRO | K2 | K1 PLUS | K1 | K0 |
|---|---|---|---|---|---|---|---|---|
|
Maximum Machinable Tube Length (mm) |
12.5 |
6.5/9.2 |
6.5/9.2/12 |
6.5/9.2 |
6.5/9.2 |
6.5 |
6.5 |
6.5 |
|
Laser Power (kW) |
12/6 |
6/3 |
12/6/3 |
6/3 |
6/3/1.5 |
3/1.5 |
6/3/1.5 |
3/1.5 |
|
Round Tube Size Range OD (mm) |
150 – 500 |
25 – 356 |
25 – 356 |
8 – 230 |
8 – 230 |
6 – 160 |
6 – 120 |
6 – 90 |
|
Square Tube Size Range (mm) |
150 – 500 |
25 – 356 |
25 – 356 |
8 – 230 |
8 – 230 |
6 – 160 |
6 – 120 |
6 – 90 |
|
Rectangular Tube Size Range (mm) |
150 – 500 |
25 – 365 |
25 – 365 |
8 – 230 |
8 – 230 |
6 – 160 |
6 – 120 |
6 – 90 |
|
Maximum Column Size (mm) |
<= |
305x305x97 |
=> |
<= 203x203x100 => |
152x152x51 |
– |
– |
|
